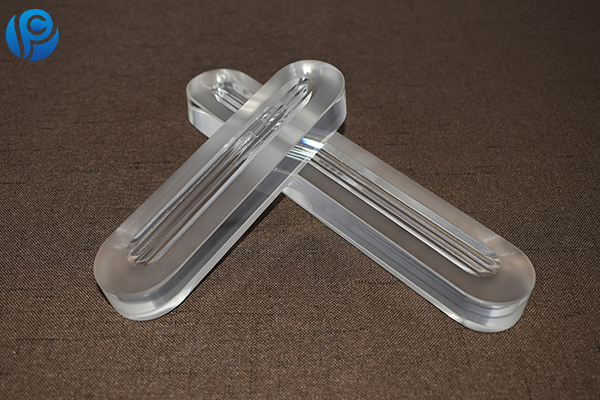

Introduction to liquid level gauge glass plate
Click：
-Time:2019-11-12 08:57
Liquid level gauge glass plate is a kind of high temperature and high pressure resistant glass product used to observe or monitor the water level and oil level of pressure vessel on the liquid level display window. Through the glass, the operator can observe the liquid level in the tower and other vessels.
There are many kinds of liquid level gauge glass. In terms of temperature, there are glasses resistant to 300 degrees, 500 degrees and 1200 degrees. In terms of pressure, the product can withstand 5-20mpa. Choosing the right product is very important for production.
Main technical performance:
Temperature stability: 360 degrees, 500 degrees, 1200 degrees
Compressive strength: 5 ~ 20MPa
Bending strength: 100 ~ 200MPa
Transparency: greater than 85%
Chemical stability: water resistance: ＜ 0.5mg/dm
Acid resistance: ＜ 0.5mg/dm
Alkali resistance: ＜ 80mg / DM
General product size:
Length: 85 ~ 550mm
Width: 30mm, 34mm
Thickness: 17mm, 22mm
Other sizes can be customized.
If you are interested in the liquid level gauge glass plate, high pressure resistant glass, high temperature glass or need to consult, please click on our online customer service, or call us.
Pan Chao, customized different quality specifications of the glass.
Pan Chao special industrial glass, tailored for your different quality of the glass.
Welcome sending your inquiry: Phone : +86 13343800331 Email: info@panchaoglass.com
